LEATHERFACE

The Hijacker Electrical Leatherface is a dual transistor fuzz hand-built and wired and then tested somewhere not far outside of Newt, Texas. A pair of matched Texas Instruments 2n1304 Germanium NPN transistors along with carefully hand selected components make up the core of this special take on a classic 60’s fuzz circuit. From the hand-peeled exterior adornments to the flowing gut-work and sonic fine-tuning, the highest attention to build quality and auditory detail has been taken with no expense spared in building this particular batch of Leatherface fuzz pedals. A multitude of internal controls within the innards of the pedal expand the functional flexibility and tonal palette that is possible with the Leatherface, taking your sound and playing down a dark and dusty unfamiliar road. We’ll see what’s left of it by morning...

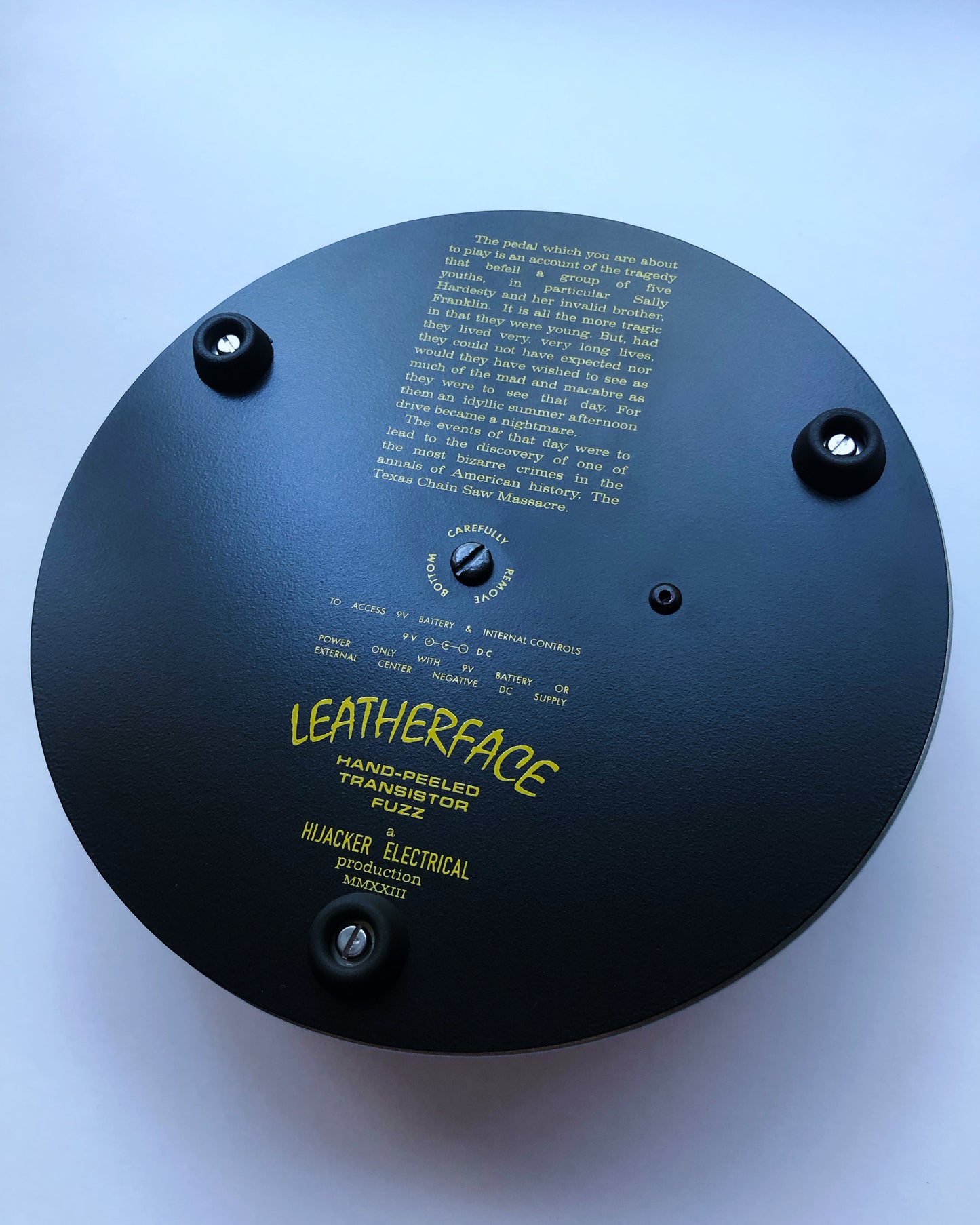

The Leatherface features 2 external controls (excluding the true bypass on/off stomp switch) and several internal controls to carve out your own sonic killing floor as you see fit. They are as follows (please consult photos for manual and a more in depth
explanation of settings and functions):

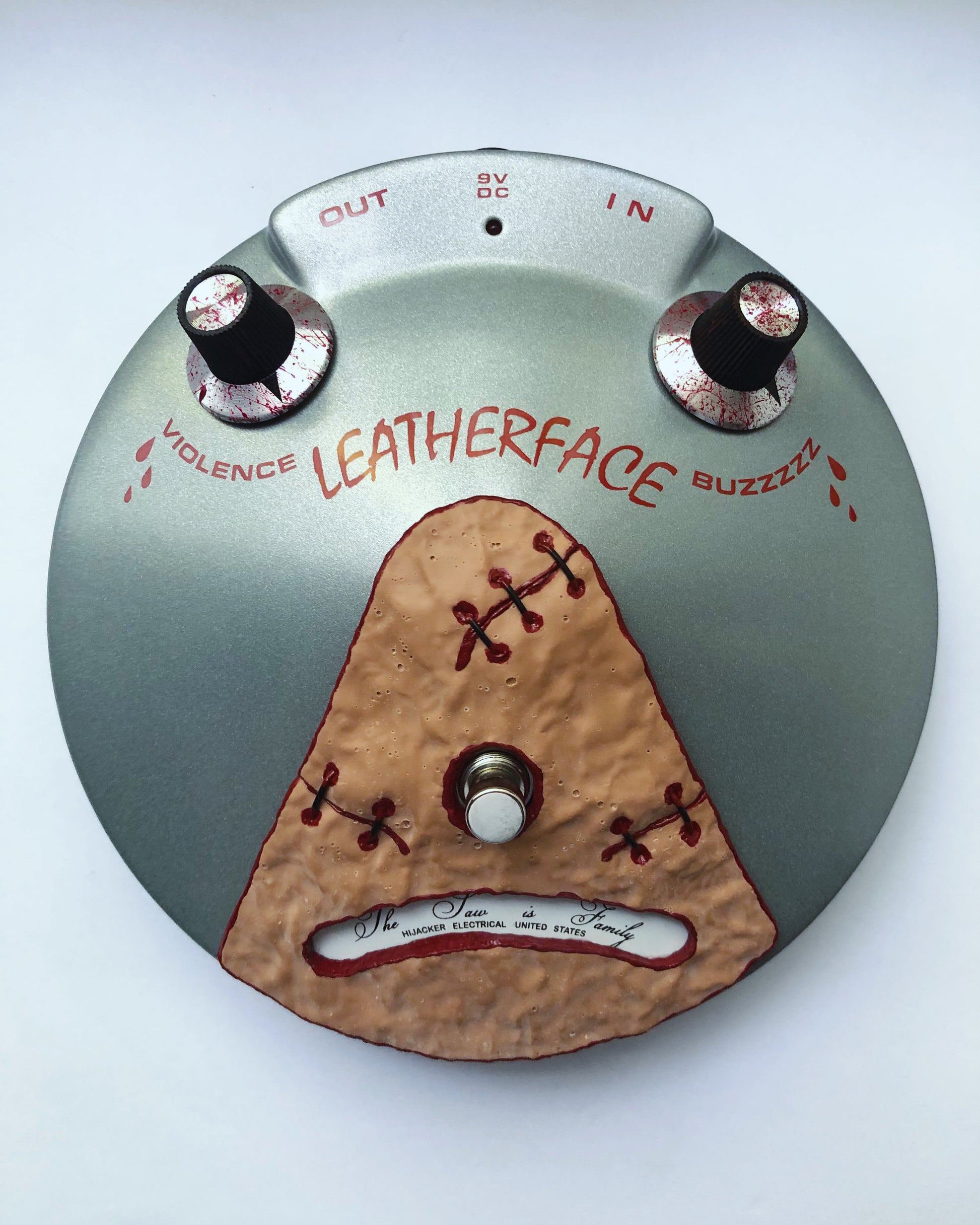

VIOLENCE-External volume control. Responsible for general output volume of the Leatherface signal.
BUZZZZZ-External fuzz control. Responsible for the level of distortion or fuzz that is in the Leatherface signal.
____________________________________________________________________

PRE-GAIN-Internal trim potentiometer control. Attenuates the signal coming into the Leatherface. Acts in a similar fashion to your guitars volume control if the Leatherface is not first in the signal chain.

BODY-Internal trim potentiometer control. Allows for an increase in bass response in the Leatherface signal.

STAGE I BIAS-Internal trim potentiometer control. Controls voltage bias over the first transistor stage of the circuit.

STAGE II BIAS-Internal trim potentiometer control. Controls voltage bias to the second and more critical stage of the circuit.

CONTOUR-Internal trim potentiometer control. Regulates the mid-range frequency contour in the Leatherface fuzz signal.

______________________________________________________________________

CLASSIC vs MODERN-Internal DPDT on/off switch. Switches between a pair of output resistor values, from a level of gain and output volume heard in more classic 1960’s type fuzz circuits, to a more modern boosted output with an inherent increase in gain.

PICKUP SIMULATOR-Internal DPDT on/off switch. The Leatherface fuzz circuit is preceded entirely by a pickup simulating circuit. A user can engage this circuit when the Leatherface is not connected directly to the electric guitars pickup network which allows the Leatherface to retain the majority of its tonal character and structure. This would otherwise be compromised if the Leatherface was not directly connected to the guitars pickup network.

Other features include...

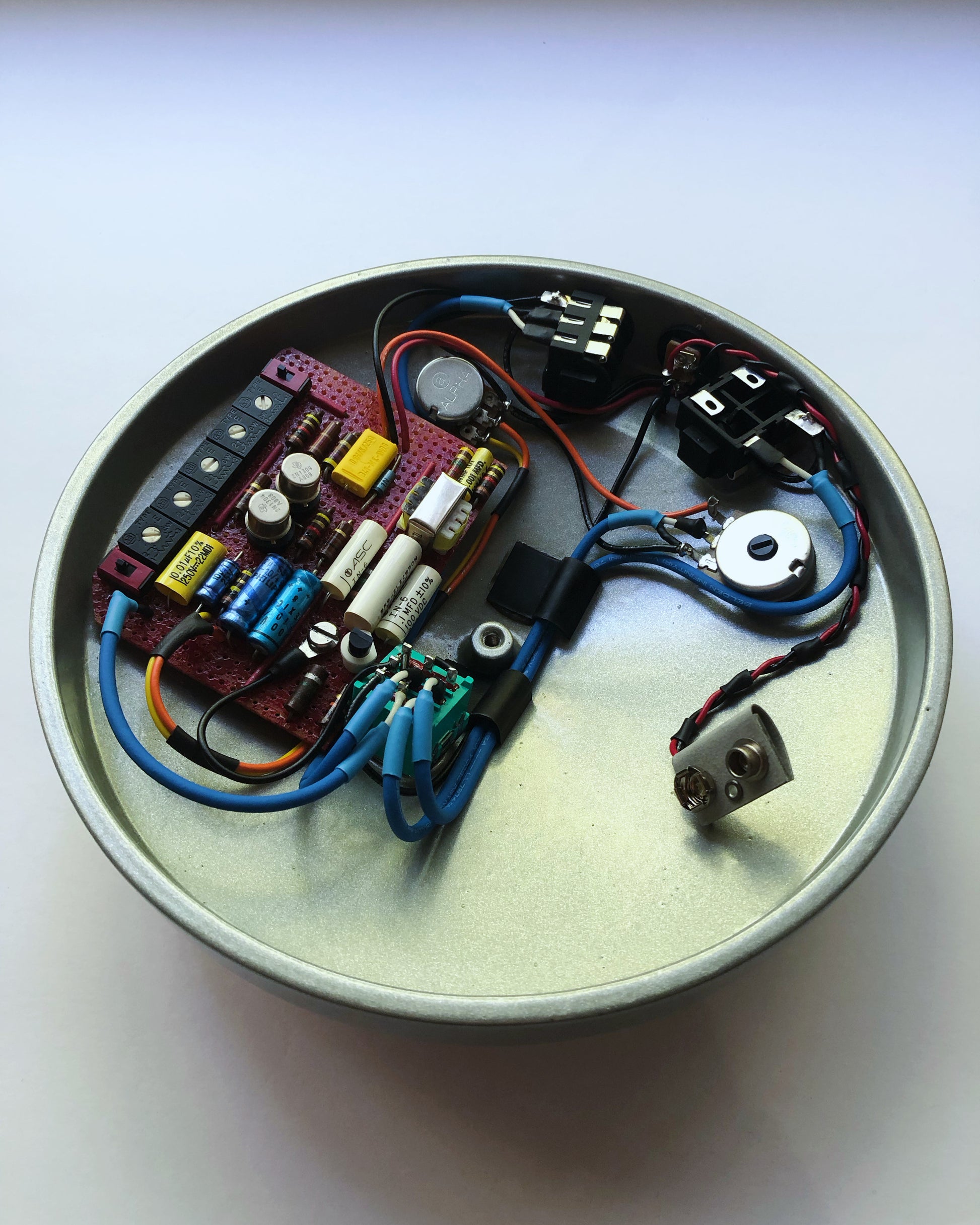

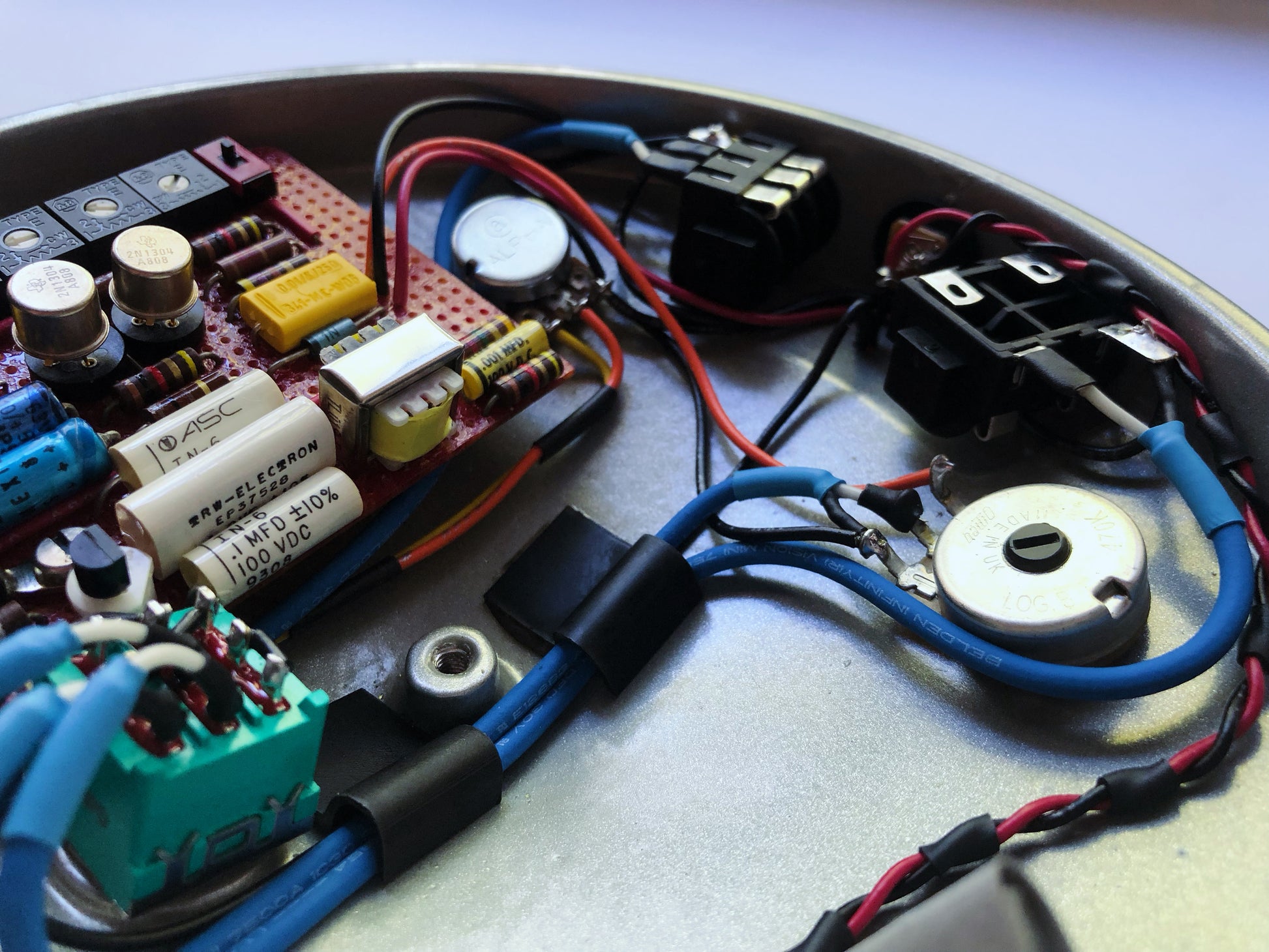

-Hand cut and populated vintage perforated-board style construction. No Printed Circuit Boards are at all utilized. Splatter included.

-Matched new old stock Texas Instruments 2n1304 Germanium NPN transistors.

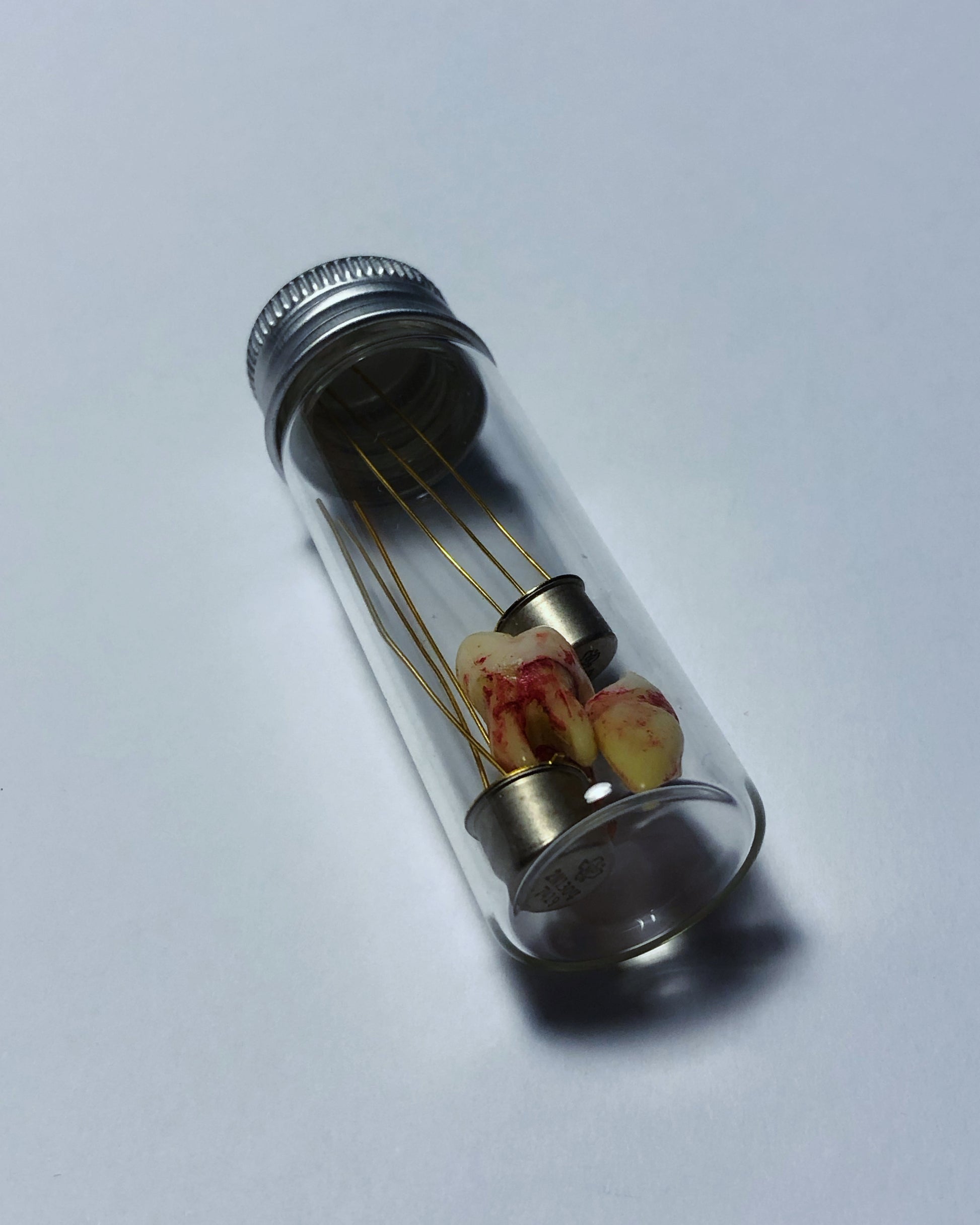

-BONUS matched pair of high gain BC108 silicon transistors with socketing itinerary. With teeth...

-New old stock Allen-Bradley, Ohmite, and TT Electronics 5% 1/2w Carbon Composition resistors

-New Old Stock Philips 341 'Chiclet' Poly Film Axial Output Capacitor

-ASC, TRW, and Cornell Dubilier Paper in Oil and Film Axial Capacitors.

-New old stock Philips BC Axial Electrolytic Capacitors

-Omeg UK 100K Log Taper Potentiometer (External controls. Volume only.)

-Alpha 16mm 1K Reverse Log Taper Potentiometer (External Controls. Fuzz control only.)

-New Old Stock Allen-Bradley Type E Trim Potentiometers (Internal controls only.)

-30mm Flying Saucer style skirted knobs with delta indicator. Splatter included.

-High brightness 3mm red diffused indicator LED

-External Cliff UK brand 2.1mm external power jack (powered via an external 9V center negative barrel tipped supply (not included)).

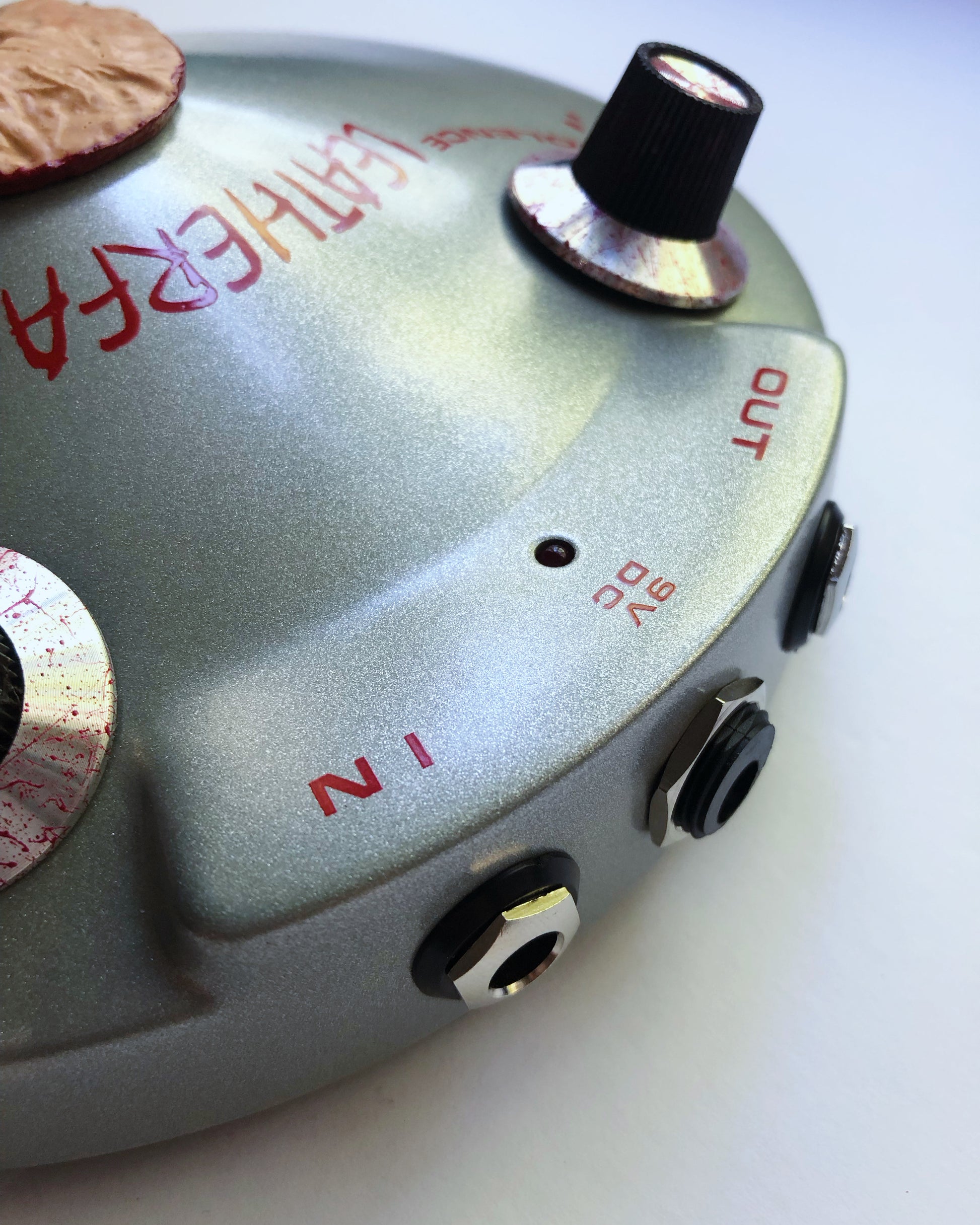

-Cliff UK brand 1/4” vintage style Input (NMJ6HC-S) and Output (NMJ4HC-S) audio jacks

-Gorva Mechano 30,000 cycle 3PDT stomp switch

-New old stock vintage style military grade 9V battery snap w/ riveted PP3 9V battery holder.

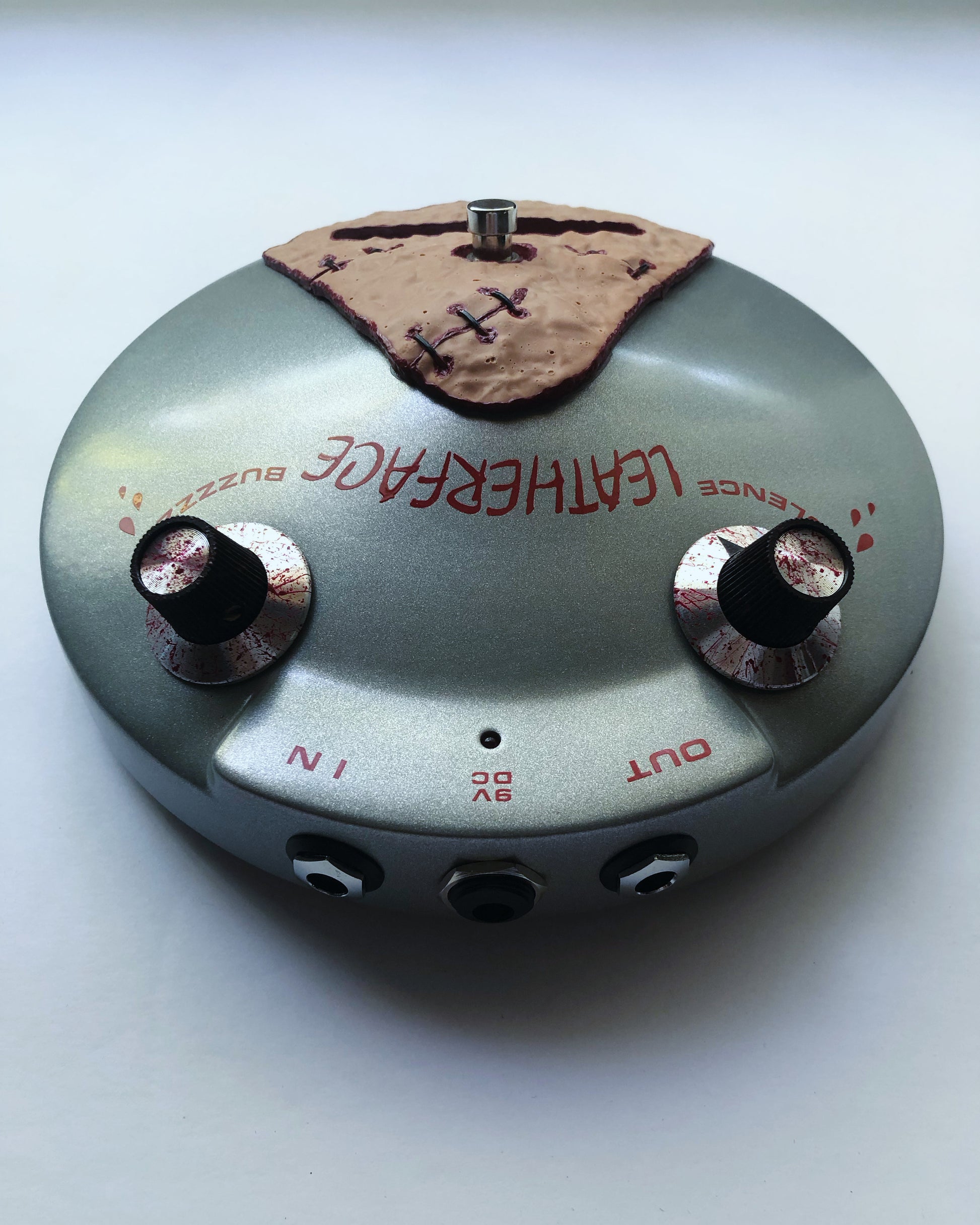

-Heavy duty die-cast aluminum ‘fuzz face’ style enclosure manufactured by Fuzzcases (fuzzcases.com)

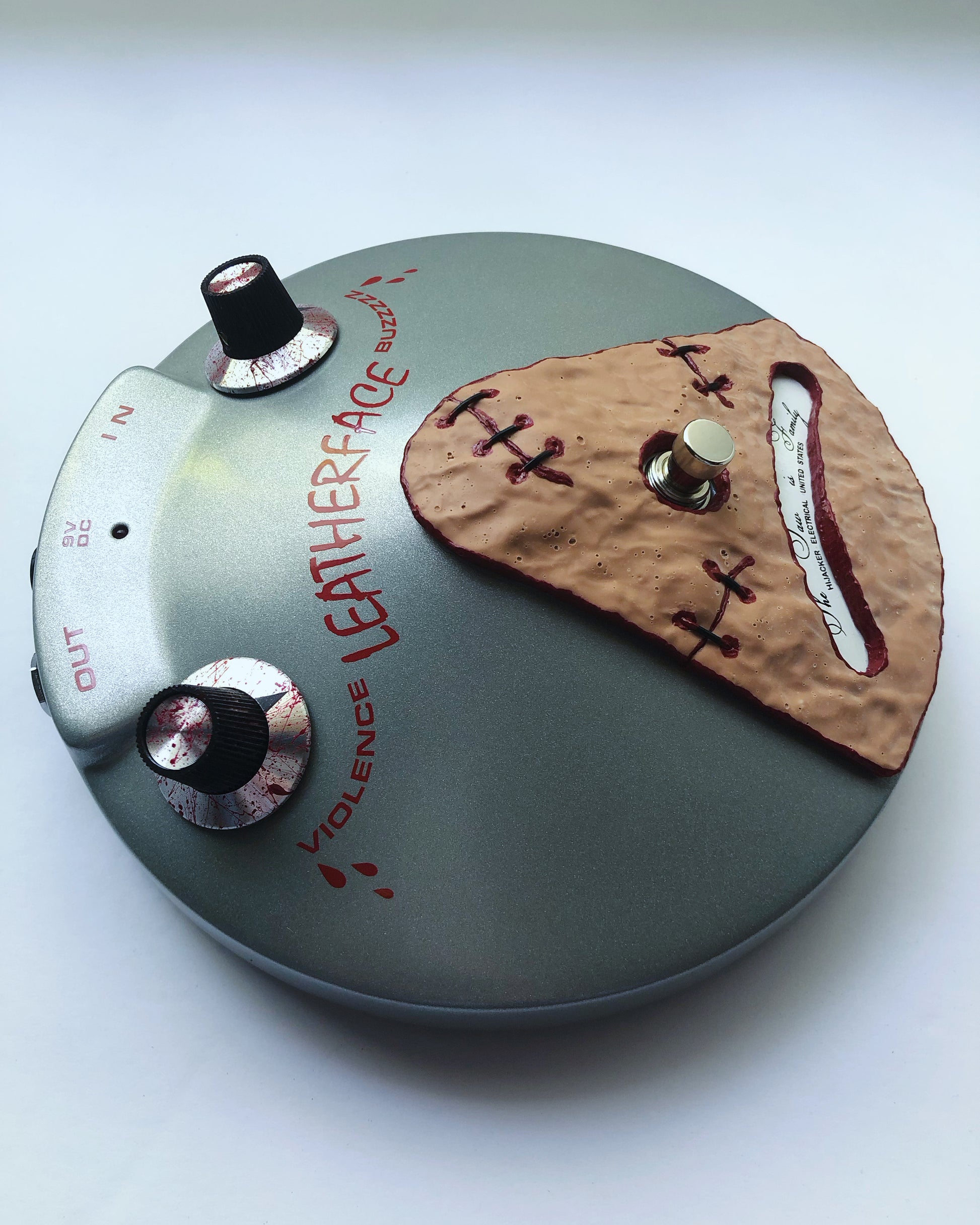

-High quality powdercoat in Silver Metallic 60 Gloss with a handscreened industrial strength graphic layout in vivid blood red.

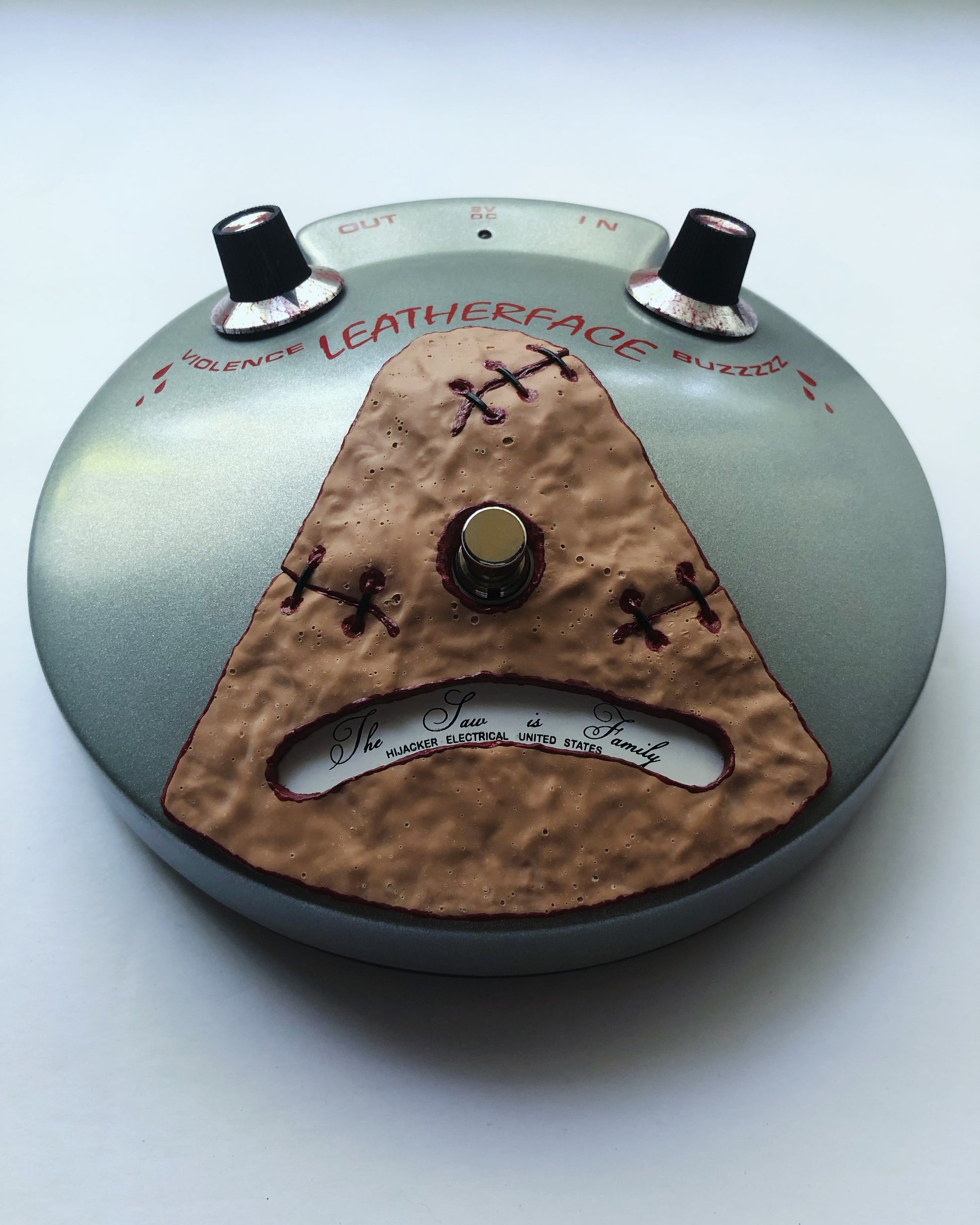

-Hand-peeled and sewn latex ‘flesh’ stomp tread.

-True Bypass wiring. When the Leatherface is OFF, it’s as if it doesn’t even exist within your signal path resulting in zero noise and signal bleed.

-Coaxial shielded wire utilized on all Input and Output signal leads.

-Limited lifetime warranty for as long as it takes the pedal to outlive you

-Packaged in an attractive white 'leftovers' butcher box with instructional & warranty itinerary

-Each and every Hijacker Electrical Leatherface is handmade, wired and tested in the United States of America.

Built throughout 2013/2014 with quantities limited to /13 worldwide $479.99 + free shipping & handling direct.

!!!CONSUMER HEALTH WARNING!!!

THIS PRODUCT CONTAINS LATEX. MAY CAUSE AN ADVERSE ALLERGIC REACTION LEADING TO HIVES, ITCHINESS, SWELLING, AND ANAPHYLAXIS WHICH MAY RESULT IN SEVERE DIFFICULTY BREATHING AND DEATH. PLEASE CONSULT WITH YOUR PHYSICIAN IF YOU MAY HAVE A LATEX ALLERGY OR MAY BE AT RISK OF DEVELOPING A LATEX ALLERGY BEFORE USING THE HIJACKER ELECTRICAL LEATHERFACE. HIJACKER ELECTRICAL IS NOT RESPONSIBLE FOR ANY ALLERGIC REACTION OR DEATH AFTER USING A HIJACKER ELECTRICAL PRODUCT.
